Video Doorbell Phone Camera - Classic
Specifications
Input Power Supply: AC 85V-240V
Output: 12V - 1A
Battery Base: 18650 Lithium
Camera: 3MP
Sensor Range: 05 to 07 meters
Storage Support: 8/16/32/64/128 GB
Angle view: 166 Degree
Description
Monitor your home door from anywhere
Smart Doorbell Phone Camera with a motion-activation and notification, two-way communication, and brilliant HD video, you will never miss a visitor again. See, hear, and speak to anyone at your door in real-time from your smartphone, tablet, or desktop. Day or night, rain or shine. With our Y5 doorbell, you will always be at home.

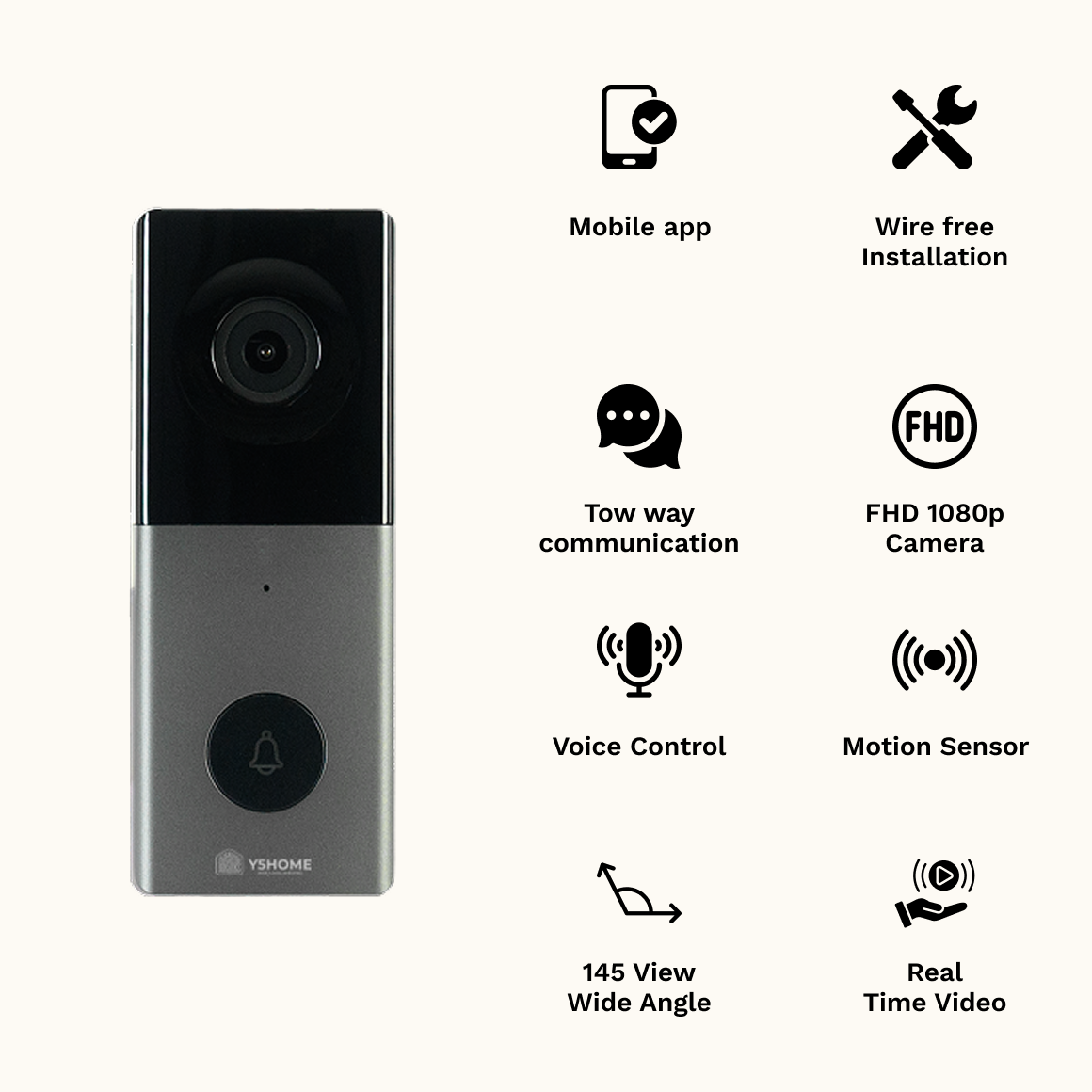

Multi function Smart Door Bell
Video Recording
Full HD Live Video
166 Degree Angle
7m Distance of Night Vision
Motion Detection
Key Features of Smart Door Bell
Voice Mail
AES128-bit encryption ensures secure, offline access.
Remote Monitoring & Live Preview
AES128-bit encryption ensures secure, offline access.
Advanced Night Visibility
AES128-bit encryption ensures secure, offline access.
How to Install?
Step 1
Remove Old Door Bell.
Unscrew and carefully remove the existing door lock to prepare for installation.
Step 2
Install New Door Bell.
Align the smart lock properly and securely fix it onto the door.
Step 3
Connect & Power Up.
Insert batteries, connect necessary wiring, and power up the smart lock.
Step 4
Configure & Test.
Set up the lock in the app, configure access settings, and test functionality.

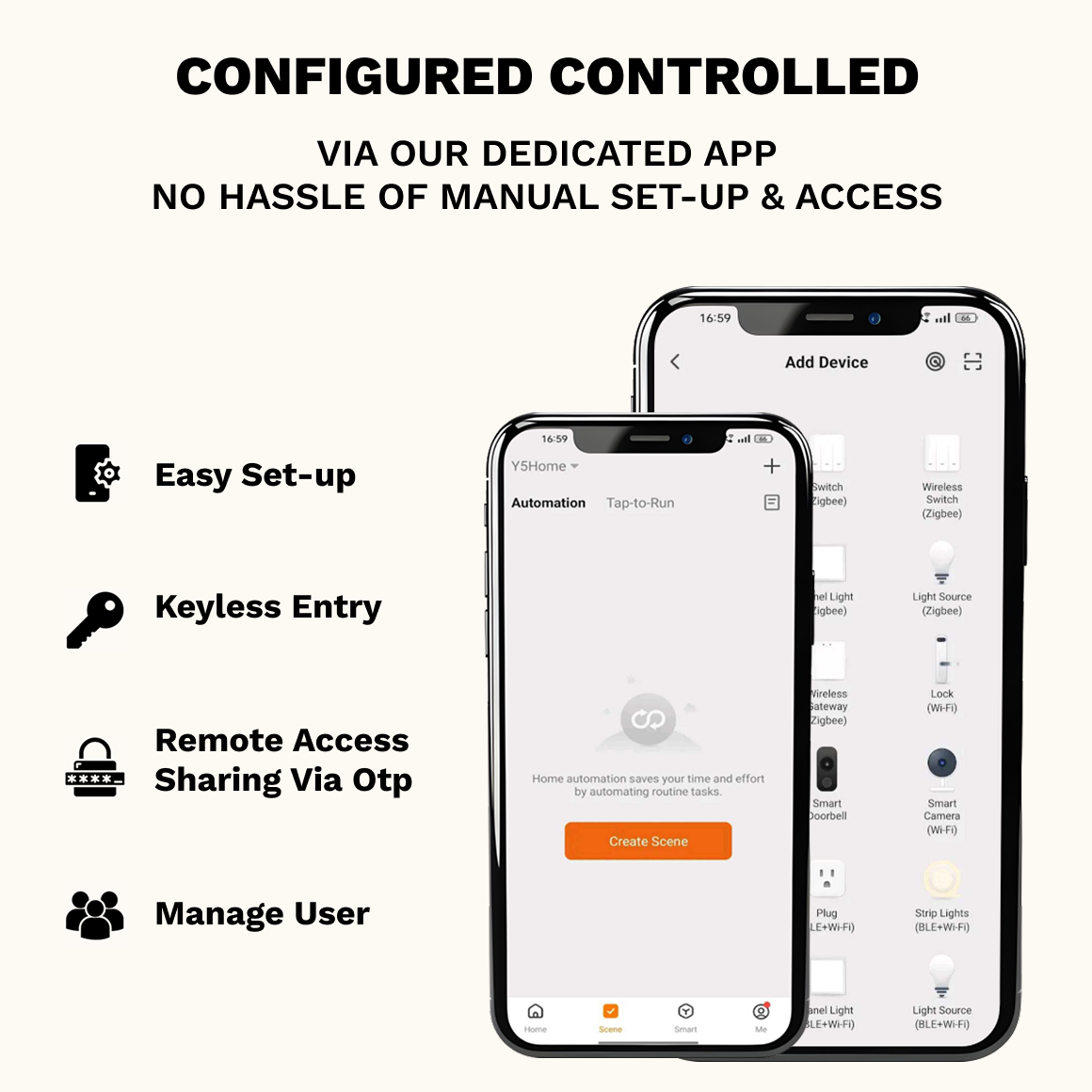

Download App from Play Store or App Store
General Questions
A smart video doorbell is a device that connects to your Wi-Fi network and allows you to monitor visitors through your Smartphone. It features a camera, microphone, speaker, and motion detection for security.
It connects to your home Wi-Fi and sends live video and notifications to your Smartphone when someone rings the doorbell or motion is detected. You can see and talk to visitors from anywhere.
Yes, a stable internet connection is required for live streaming, notifications, and cloud storage.
Without Wi-Fi, basic features like ringing may work, but live streaming and remote access will not function.
Setup & Installation
our doorbells can be mounted with screws or adhesive. Follow these steps:
- 1. Charge or connect the device to power.
- 2. Mount it near your door using the provided bracket.
- 3. Connect it to Wi-Fi via the our Y5Wolrd app.
- 4. Test the video and audio functions.
Our some models support wired chimes. Others may require a separate wireless chime module.
The doorbell usually comes with our Y5World app.
For best performance, place the doorbell within 15-30 feet of the router. Weak signals may cause video lag.
Features & Usage
Yes, as long as the device is connected to the internet, you can access the live feed from our Smartphone app.
Yes, our most smart video doorbells have a built-in microphone and speaker for two-way communication.
Yes, our most models include infrared or LED night vision to provide a clear view in the dark.
Yes, the doorbell can send notifications when it detects movement. Our some models allow you to adjust the sensitivity.
Yes, our app allows multiple users to view the camera feed and receive alerts.
Motion detection range varies by model but typically covers 2-7 meters (6-21 feet). Some models allow you to adjust sensitivity settings.
If the internet is down, you won’t receive remote notifications or live feed access, but our some models will continue recording to local storage.
Storage & Security
our doorbells allow video recording on a microSD card (e.g., 32GB, 64GB, or 128GB).
Yes, we offer 4 days free and paid cloud storage for video recordings. Check our app for subscription details.
Yes, we use encryption (e.g., AES-128 or AES-256) to protect video data.
Make sure to set a strong password for your account.
Battery & Power
Models vary—some are battery-powered, while others connect to existing
doorbell wiring.
Battery life depends on usage, but typically lasts 2 months per charge.
Our most models have a removable battery or a USB charging port. Check the user manual for specific instructions.
Our some models support constant power through a USB cable or wired doorbell connection.
Battery-powered models usually have a removable or rechargeable battery that you can charge via USB-C or Micro-USB.
Battery-powered models will continue working, while wired models may require a backup power source.
Troubleshooting
- Ensure you are using a 2.4GHz Wi-Fi network (not 5GHz).
- Restart your router and move the doorbell closer.
- Reset the doorbell and try reconnecting.
- Check your internet speed (at least 2 Mbps upload is recommended).
- Reduce other devices using bandwidth.
- Upgrade your router if needed.
- Enable notifications in the app settings.
- Check phone settings to allow background activity/
- Restart the app and ensure the doorbell is online.
- Clean the camera lens.
- Ensure no bright light sources interfere with night vision.
- Adjust night vision settings in the app.
- Ensure motion detection is enabled in the app.
- Adjust sensitivity settings.
- Remove obstacles blocking the camera’s view.
You can use a Wi-Fi extender to improve signal strength or install the doorbell
closer to your router if possible.
Our some doorbells have anti-theft alarms. Even if stolen, the video recordings may still be available in the cloud.
- Check notification settings in the app.
- Ensure the device has power.
- Verify your phone’s notification settings.
our doorbells have a reset button—press and hold it for about 10 - 15 seconds to restore factory settings.
